CHECK VALVES

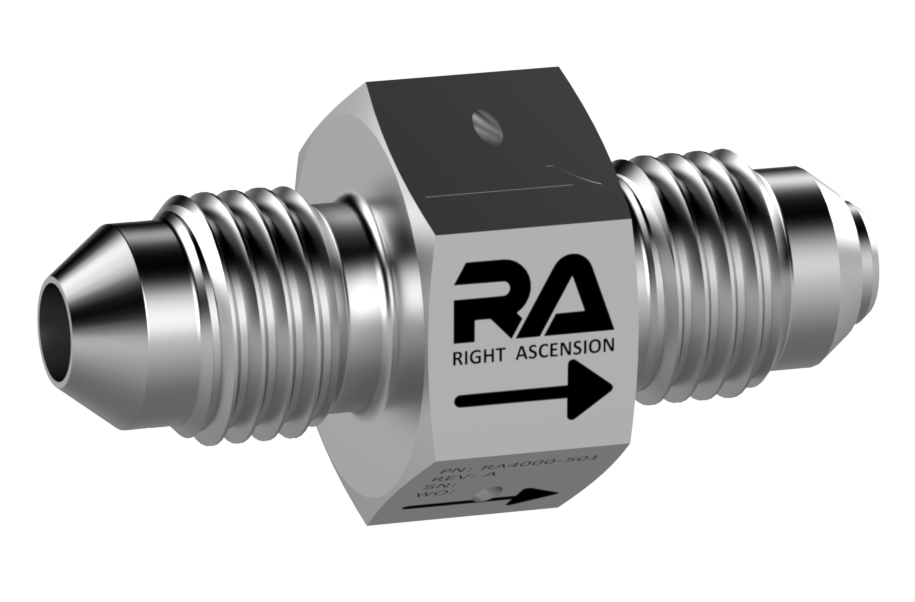

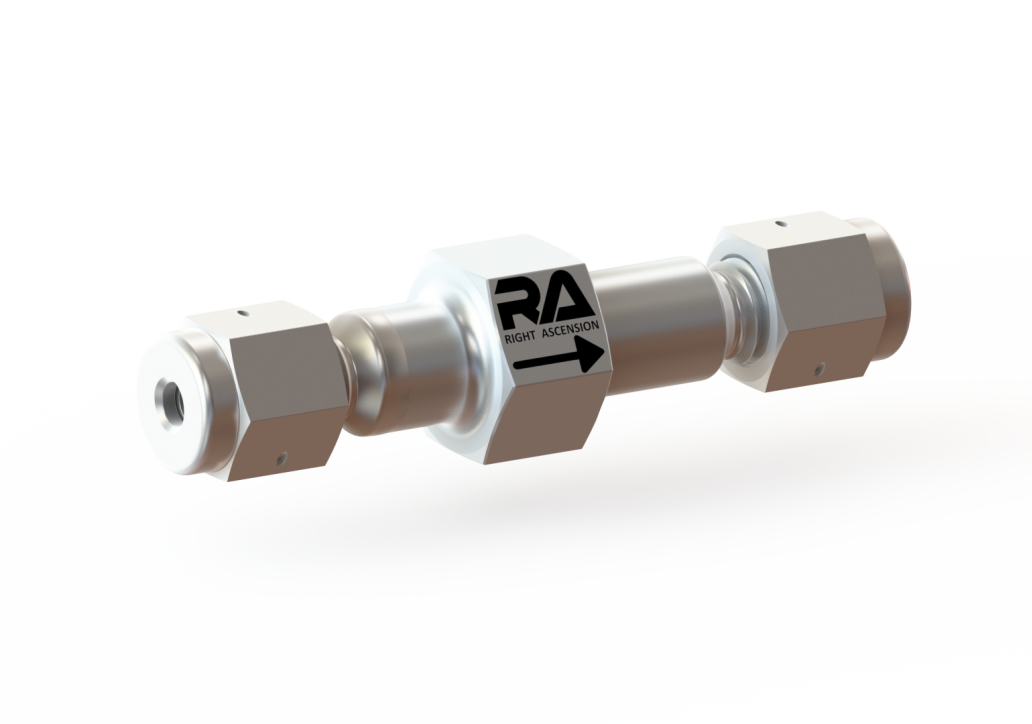

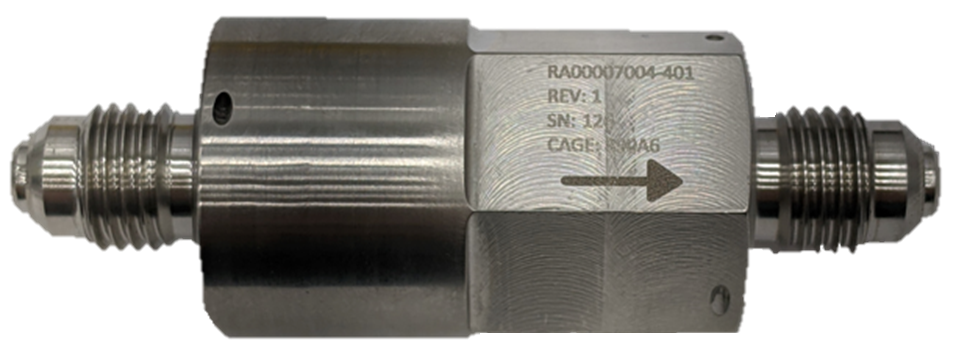

Series 4000

The Series 4000 is a family of spring-assissted poppet check valves.

Suitable for the most demanding service environments over land, sea, air, and space. Series 4000 valves are well suited for service in a vast assortment of gases and liquids where extended service life, gall-free operation, and bubble-tight operation are critical.



  • Zero leakage, Zero maintenance

  • Working pressures up to 10,000 psig (689 bar)

  • Standard Operating Temperature Range: -40F to 400F (-40C to 204C)

  • Extended High Temperature Service Options

  • Cryogenic Service Options

  • Nominal Cv of 0.4

  • Standard Cracking Pressure: 5 psi (0.34 bar)

  • Optional Cracking Pressures: 2, 10, 20 psi (0.14, 0.69, 1.38 bar)

  • Ideal for rapid pressure transients

  • Impervious to damage from chatter

  • Designed to withstand extreme pressure surges in the forward or reverse direction

  • Made in the USA from domestic materials conforming to aerospace specifications

  • Rigorously tested to ensure trouble free service

  • Standard Fluid Interface: AS4395 (37 Degree Flared Tube Fitting)

  • Optional Fluid Interface: AS1098, AS5202, AS1941, AS930, AS4320

gallery/Check_Valve_Material_Specs
gallery/4000_Check_Valve_Flow_Curves

Markets

  • Aerospace
  • Aviation
  • Space Vehicles and Satellites
  • Defense
  • Oil & Gas
  • Semiconductor

Applications

  • Pneumatic Systems
  • Hydraulic Systems
  • Chemical Injection
  • Propellant Pressurization Systems
  • Propellant Purge Lines
  • Ground Support Equipment
  • Commercial & Military Aircraft
  • Flight Applications
  • Automated Test Equipment
  • Launch Vehicles and Launch Facilities
  • Engine Test Facilities
gallery/Check_Valve_RevB
